| Output signal | 4-20mA |
| Input | |
| Pressure range | 0-1 bar to 0-60 bar |
| Pressure reference | Gauge |
| Over pressure | See table bellow |
| Burst pressure | See table bellow |
| Output | |
| Span | 4-20mA |
| Zero offset | < ±0.13％ FSO |
| Resolution | Infinite |
| Type | 2 wire |
| Accuracy * | < ±0.25% FSO |
| Long term stability | ±0.2% FSO / per year |
| Electrical | |
| Supply voltage | 8.5 - 30Vdc |
| Supply voltage effects | 0.012％ FSO / V |
| Power requirements | ----- |
| Load driving capability | 1075Ω 30Vdc |
| Reverse polarity | Protected |
| Output short circuit | No damage |
| Misconnection | Protected |
| Insulation resistance | 100MΩ 100Vdc |
| Response time | < 1ms |
| Environmental | |
| Operating temperature range | -40 to +135℃-Media -20 to +80℃-Ambient |
| Storage temperature range | -40 to 85℃ |
| Thermal zero shift | 0.035% FSO /℃ |
| Thermal sensitivity shift | 0.035% FSO /℃ |
| Vibration tolerance | 10g’s to 50Hz |
| Mechanical shock | 15g (11mS) |
| Operating humidity | 95% RH |
| Physical | |
| Pressure media | Stainless steel 316 / Ceramic AL?O? |
| Pressure connection | R 1/ 4" |
| Housing material | Stainless steel 316 |
| Electrical connection | Shielded cable AWG26 UL No.2464 1m / 2m |
| Enclosure rating | IP67 |
| Natural frequency | 12KHz Ceramic |
| Weight | 100 - 130grams approx |
| CE Conformity | EN61326 - 1 (2013) ,CISPR11 IEC / EN61000 - 4 - 2 (2009) / -3 (2006+A2:2010) / -8 (2010) |

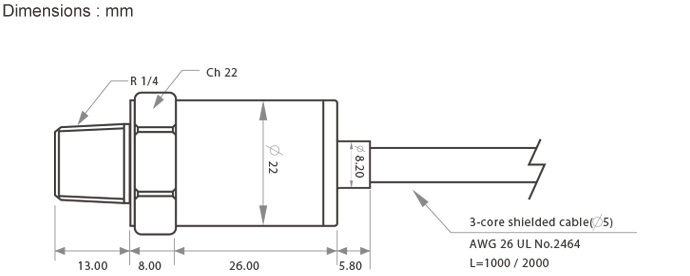

Description

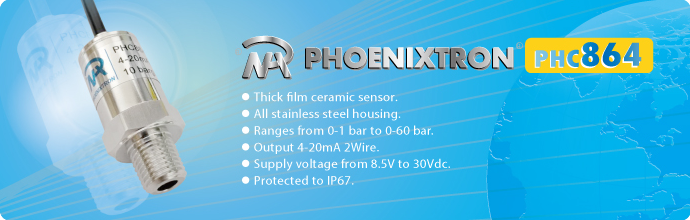

The PHC864 pressure transmitter incorporates the highly stable ceramic thick film pressure diaphragm, They offer outstanding chemical, corrosion and abrasion resistance, and provide wide range of operating temperature -40 ~+135℃.
Applications for PHC864 include the continuous monitoring of oil, gas, water and other liquids in the process. They also apply in the measurement and control of pressure in refrigeration, compressor, and engine monitoring system.
The PHC864 Pressure Transmitter is available in pressure ranges from 0-1 bar to 0-60 bar gauge. an outputs signal of 4-20mA (2 wire) is standard.
Technical data
FSO ⇒ Full Scale Output.
Accuracy * ⇒ Combined non-linearity, hysteresis and repeatability.
Pressure ranges
| Ranges(bar) | 1 | 1.6 | 2 | 2.5 | 4 | 6 | 10 | 16 | 20 | 25 | 40 | 60 |
| Over pressure(bar) | 3 | 4 | 4 | 10 | 10 | 20 | 50 | 50 | 100 | 100 | 100 | 180 |
| Burst pressure(bar) | 4 | 5 | 5 | 12 | 12 | 25 | 70 | 70 | 120 | 120 | 120 | 220 |
Electrical connection diagrams
Load driving chart (4-20mA)

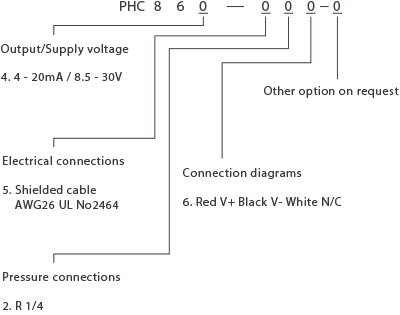

Ordering information
