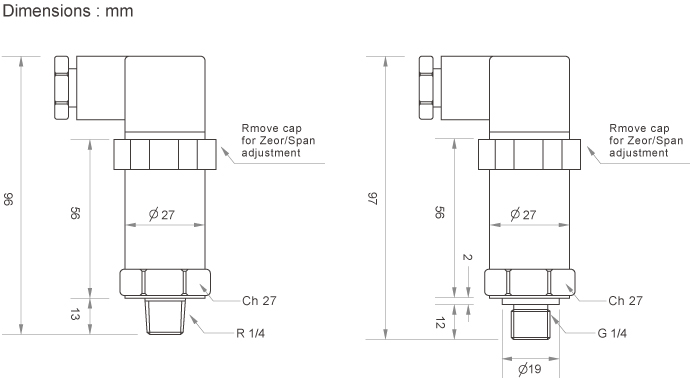

| Output signal | 0-5V / 1-5V | 0-10V | 4-20mA |
| Input | |||
| Pressure range | 0-1 bar to 0- 600 bar | ||
| Pressure reference | Gauge / Absolute | ||
| Over pressure | See table bellow | ||
| Burst pressure | See table bellow | ||
| Output | |||
| Span adjustment | Adjustable ±10%FSO | ||
| Zero adjustment | Adjustable ±10%FSO | ||
| Resolution | Infinite | ||
| Type | 3 wire | 2 wire | |
| Accuracy * | < ±0.25% FSO ( < ±0.35% FSO for ceramic sensor ) | ||
| Long term stability | ±0.2% FSO / per year | ||
| Electrical | |||
| Supply voltage | 10 – 40Vdc | 15 – 40Vdc | 9 – 40Vdc |
| Supply voltage effects | 15μV / V | 30μV / V | 2μA / V |
| Power requirements | < 13 mA | < 18 mA | – – – – – |
| Load driving capability | 2.5K ( min ) | 5K ( min ) | 1550Ω 40Vdc |
| Reverse polarity | Protected | ||
| Output short circuit | No damage | ||
| Misconnection | Protected | ||
| Insulation resistance | 100MΩ 100Vdc | ||
| Response time | < 1ms | ||
| Environmental | |||
| Operating temperature range | -20 to 85℃ | ||
| Storage temperature range | -40 to 105℃ | ||
| Thermal zero shift | < 0.01%FSO /℃ (< 0.03%FSO /℃ for ceramic sensor ) | ||
| Thermal sensitivity shift | < 0.02%FSO /℃ (< 0.01%FSO /℃ for ceramic sensor ) | ||
| Vibration tolerance | 10g's to 50Hz | ||
| Mechanical shock | 15g( 11mS ) | ||
| Operating humidity | 95% RH | ||
| Physical | |||
| Pressure media | Stainless steel 17- 4PH / Ceramic AL² O ³+ 316L | ||
| Pressure connection | G 1/ 4" R 1/ 4" | ||
| Housing material | Stainless steel 304 | ||
| Electrical connection | DIN plug + socket to DIN43650 | ||
| Enclosure rating | IP65 | ||
| Natural frequency | 20KHz 17-4PH / 12KHz Ceramic | ||
| Weight | 130grams approx | ||
| CE Conformity | EN61326 - 1 ( 2006 ) IEC / EN61000 - 4 - 2 / 3 / 4 / 6 | ||
Description

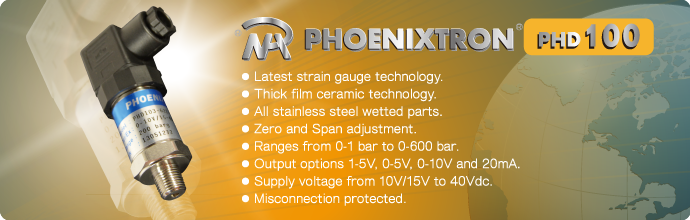

PHD100 series of Pressure Transducers are based on latest strain gauge with
17-4PH stainless steel diaphragm for ranges of over 25 bar. And the sensing elements for measuring bridge deposited on ceramic diaphragm ( ie thick film technology ) for ranges under 25 bar.
PHD100 Pressure Transducers are designed mainly to measure pressure in air, oil, water and other liquids in the process, industrial, medical and aerospace industry . They can also be used in the measurement and control of pressure in refrigeration , injection, press, compressor and mobile hydraulic.
PHD100 Pressure Transducers are available in pressure ranges from 0-1bar to 0-600 bar gauge or absolute. They have electrical outputs of 1-5Vdc, 0-5Vdc, 0-10Vdc and 4-20mA (2 wire).
Technical data
FSO ⇒ Full Scale Output.
Accuracy * ⇒ Combined non-linearity, hysteresis and repeatability.
Pressure ranges
| Ranges(bar) | 1 | 1.6 | 2 | 2.5 | 4 | 6 | 10 | 16 | 20 | 25 | 40 | 60 | 100 | 160 | 200 | 250 | 400 | 600 |
| Over pressure(bar) | 3 | 4 | 4 | 10 | 10 | 20 | 20 | 40 | 40 | 100 | 2xrated pressure | |||||||
| Burst pressure(bar) | 4 | 5 | 5 | 12 | 12 | 25 | 25 | 50 | 50 | 120 | 4xrated pressure | |||||||
Electrical connection diagrams
Load driving chart (4-20mA)

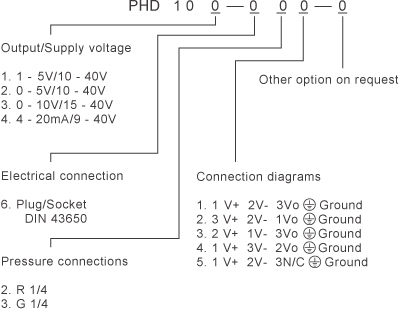

Ordering information
