| Output signal | 0-5V / 1-5V | 0-10V | 4-20mA |
| Input | |||
| Pressure range | 0-1 bar to 0- 600 bar | ||
| Pressure reference | Gauge / Absolute | ||
| Over pressure | See table bellow | ||
| Burst pressure | See table bellow | ||
| Output | |||
| Span | 0-5/1-5Vdc | 0-10Vdc | 4-20mA |
| Zero offset | < ±0.13％FSO | < ±0.10%FSO | < ±0.13％FSO |
| Resolution | Infinite | ||
| Type | 3 wire | 2 wire | |
| Accuracy * | < ±0.25% FSO ( < ±0.35% FSO for ceramic sensor ) | ||
| Long term stability | ±0.2% FSO / per year | ||
| Electrical | |||
| Supply voltage | 8 - 30Vdc | 13 - 30Vdc | 9 - 40Vdc |
| Supply voltage effects | 0.004％FSO / V | 0.008％FSO / V | 0.012％FSO / V |
| Power requirements | < 12 mA | < 17 mA | – – – – – |
| Load driving capability | 2.5K ( min ) | 5K ( min ) | 1550Ω 40Vdc |
| Reverse polarity | Protected | ||
| Output short circuit | No damage | ||
| Misconnection | Protected | ||
| Insulation resistance | 100MΩ 100Vdc | ||
| Response time | < 1ms | ||
| Environmental | |||
| Operating temperature range | -20 to 85℃ | ||
| Storage temperature range | -40 to 105℃ | ||
| Thermal zero shift | < 0.02%FSO /℃ (< 0.035%FSO /℃ for ceramic sensor ) | ||
| Thermal sensitivity shift | < 0.025%FSO /℃ (< 0.012%FSO /℃ for ceramic sensor ) | ||
| Vibration tolerance | 10g's to 50Hz | ||
| Mechanical shock | 15g( 11mS ) | ||
| Operating humidity | 95% RH | ||
| Physical | |||
| Pressure media | Stainless steel 17- 4PH / Ceramic AL² O ³+ 316L | ||
| Pressure connection | G 1/ 4" R 1/ 4" | ||
| Housing material | Stainless steel 304 | ||
| Electrical connection | DIN plug + socket to DIN43650 / Shielded cable AWG26 UL No.2464 | ||
| Enclosure rating | IP65 / IP54 (Shielded cable) | ||
| Natural frequency | 20KHz 17-4PH / 12KHz Ceramic | ||
| Weight | 110grams approx | ||
| CE Conformity | EN61326 - 1 ( 2006 ) IEC / EN61000 - 4 - 2 / 3 / 4 / 6 | ||

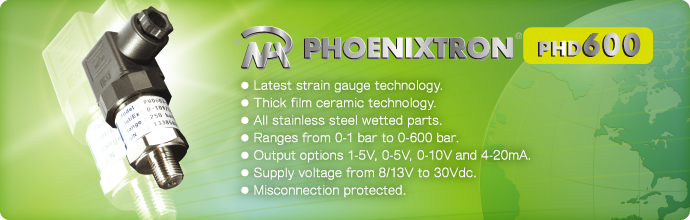

Description
PHD600 series of Pressure Transducers are based on latest strain gauge with
17 - 4PH stainless steel diaphragm for ranges of over 25 bar. And the sensing elements for measuring bridge deposited on ceramic diaphragm ( ie thick film technology ) for ranges under 25 bar.
Applications for PHD600 include the continuous monitoring of oil, gas, water and other liquids in the process. They also apply in the measurement and control of pressure in refrigeration, compressor, press, injection and engine monitoring system.
PHD600 Pressure Transducers are available in pressure ranges from 0-1 bar to 0-600 bar gauge or absolute. They have electrical outputs of 1-5Vdc, 0-5Vdc, 0-10Vdc and 4-20mA (2 wire ).
Technical data
FSO ⇒ Full Scale Output.
Accuracy * ⇒ Combined non-linearity, hysteresis and repeatability.
Pressure ranges
| Ranges(bar) | 1 | 1.6 | 2 | 2.5 | 4 | 6 | 10 | 16 | 20 | 25 | 40 | 60 | 100 | 160 | 200 | 250 | 400 | 600 |
| Over pressure(bar) | 3 | 4 | 4 | 10 | 10 | 20 | 20 | 40 | 40 | 100 | 2xrated pressure | |||||||
| Burst pressure(bar) | 4 | 5 | 5 | 12 | 12 | 25 | 25 | 50 | 50 | 120 | 4xrated pressure | |||||||

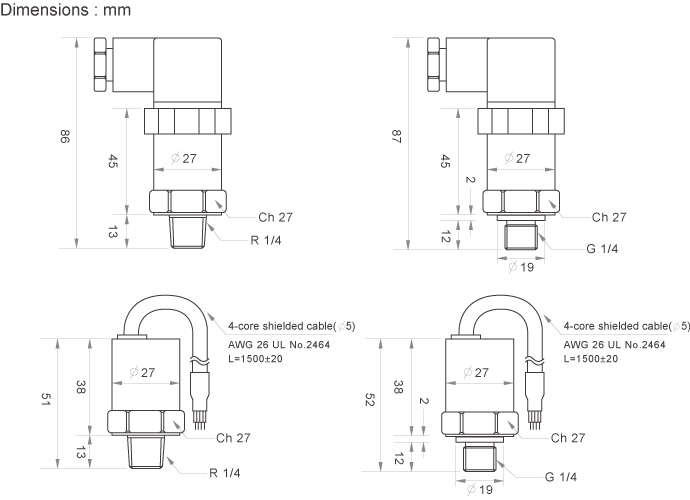

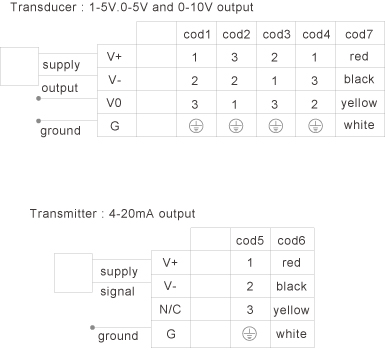

Electrical connection diagrams
Load driving chart (4-20mA)

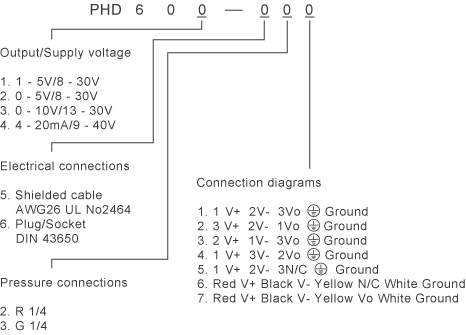

Ordering information
